AWS-利用Fargate创建ECS集群

Fargate 是使用 Amazon Elastic Container Service 托管容器的无服务器方式。

本实验来自于Building Containerized Applications on AWS第二周的内容：AWS Fargate Demonstration

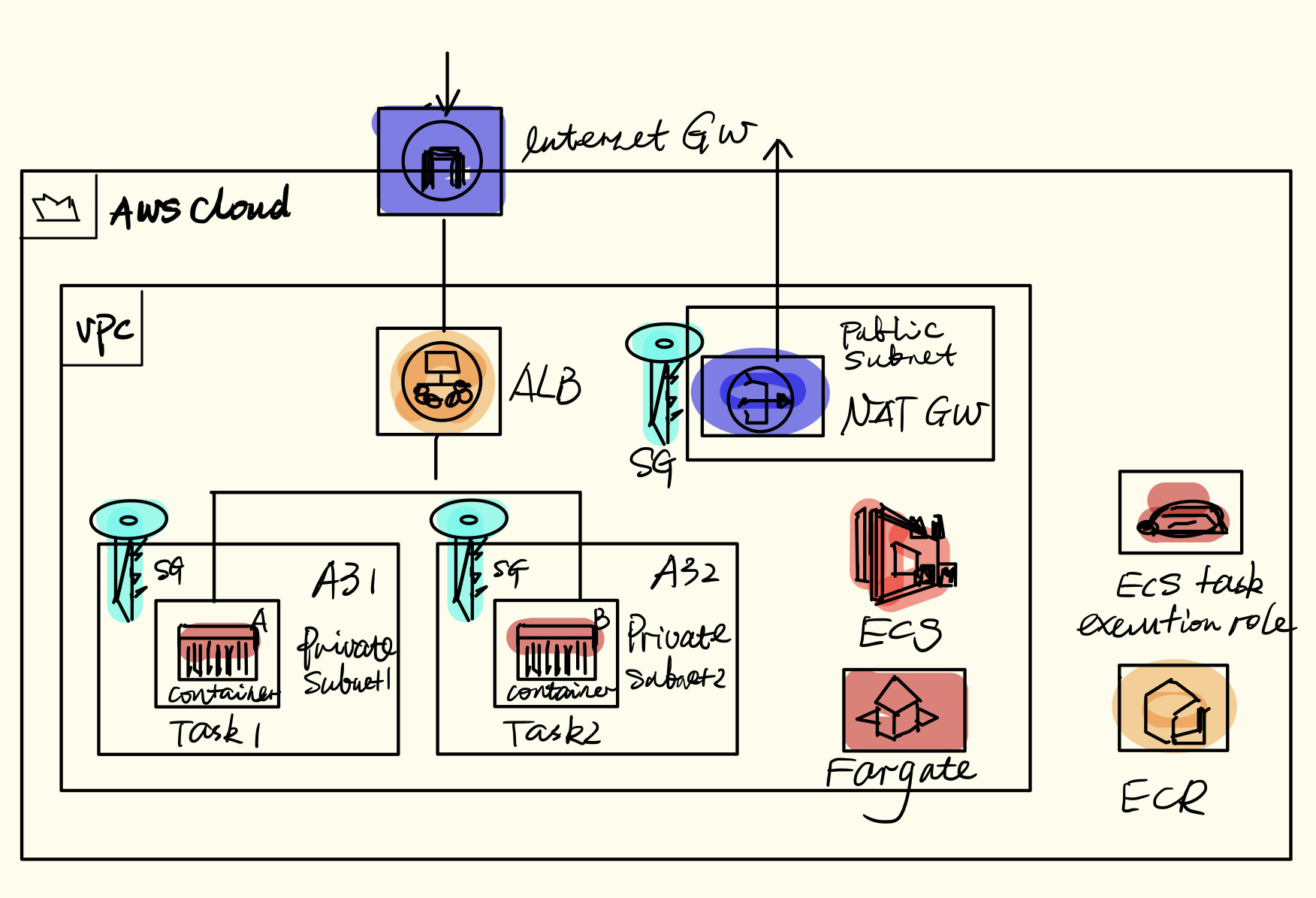

实验拓扑

实验说明

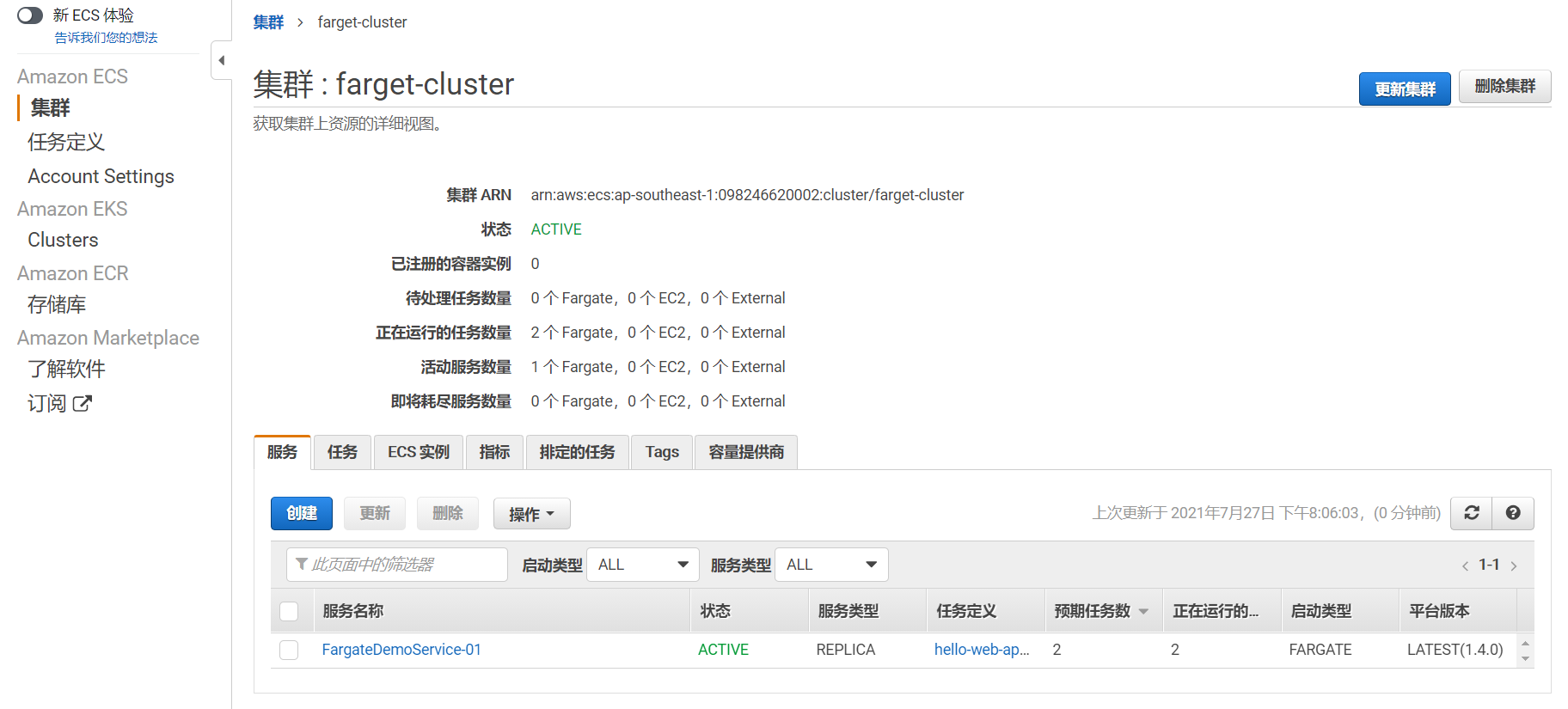

本实验将创建一个集群，集群是承载容器的基础架构的逻辑隔离边界。该集群位于默认VPC内，跨越两个可用区。在每个可用区设定私有子网，分别为172.31.111.0/24和172.31.112.0/24。Fargate 将自动配置和管理集群。
创建任务Task，任务在基本级别是一个用于运行容器的包装器。创建任务定义的时候将对要运行的一个或多个容器的配置进行规定。

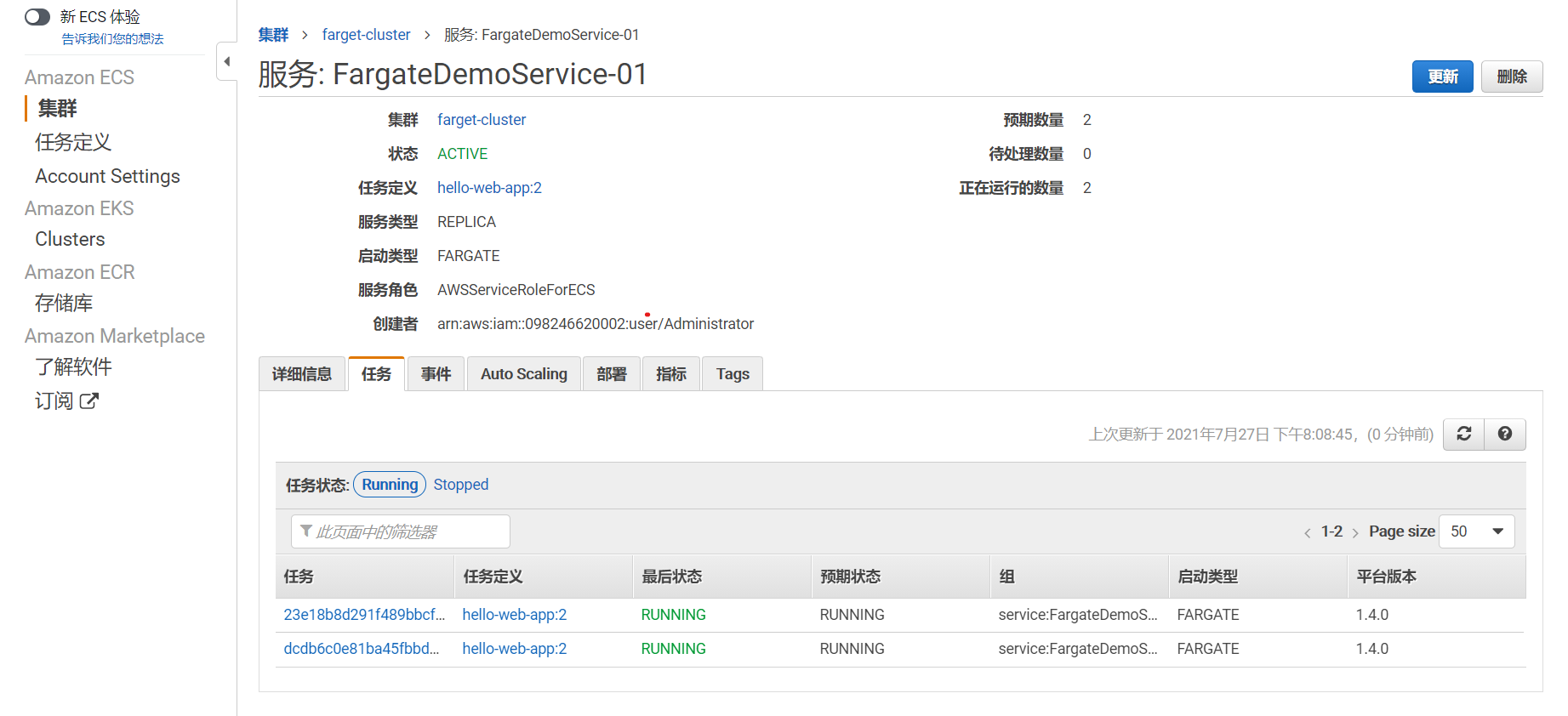

创建服务，服务是对外提供的。将匹配创建的集群和任务。

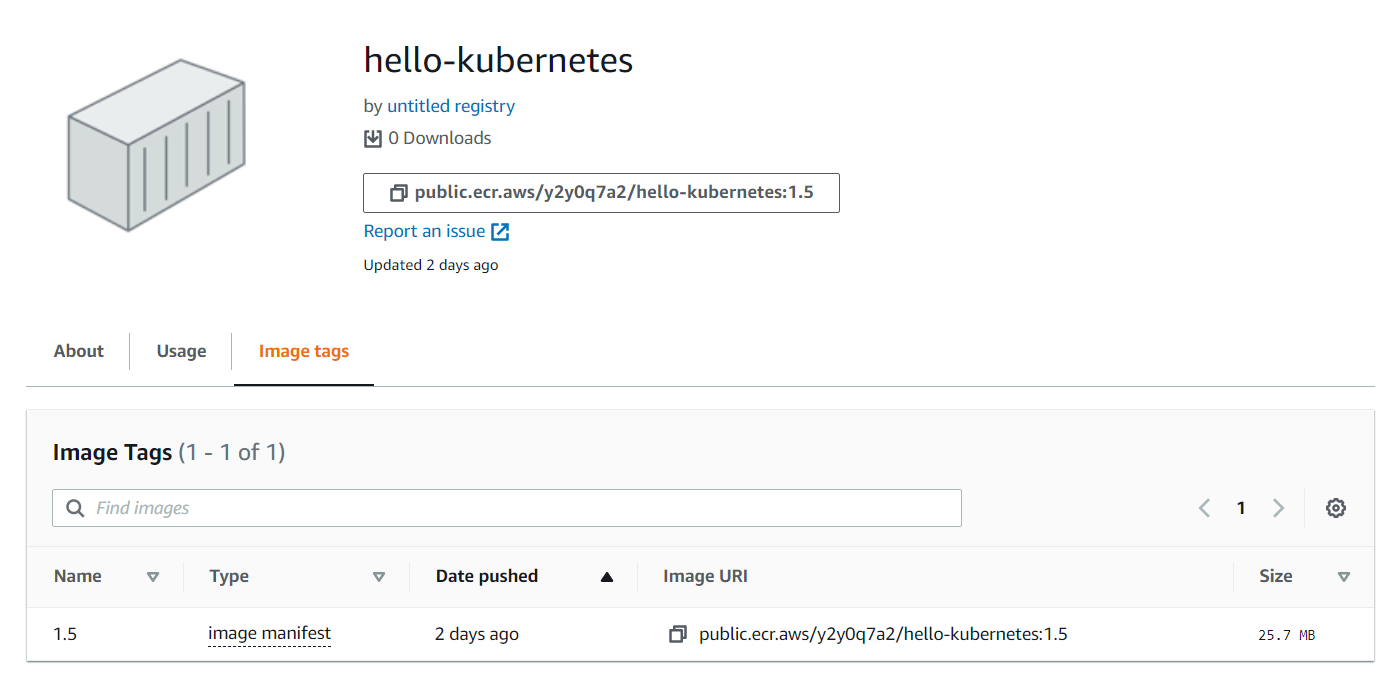

容器使用的Image来自于ECR。

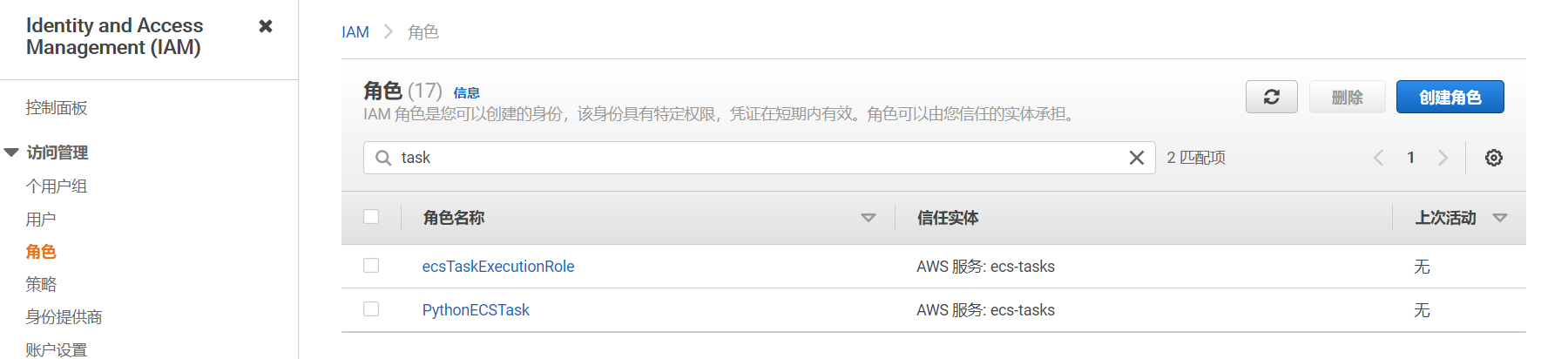

需要对Task创建等提供Role。

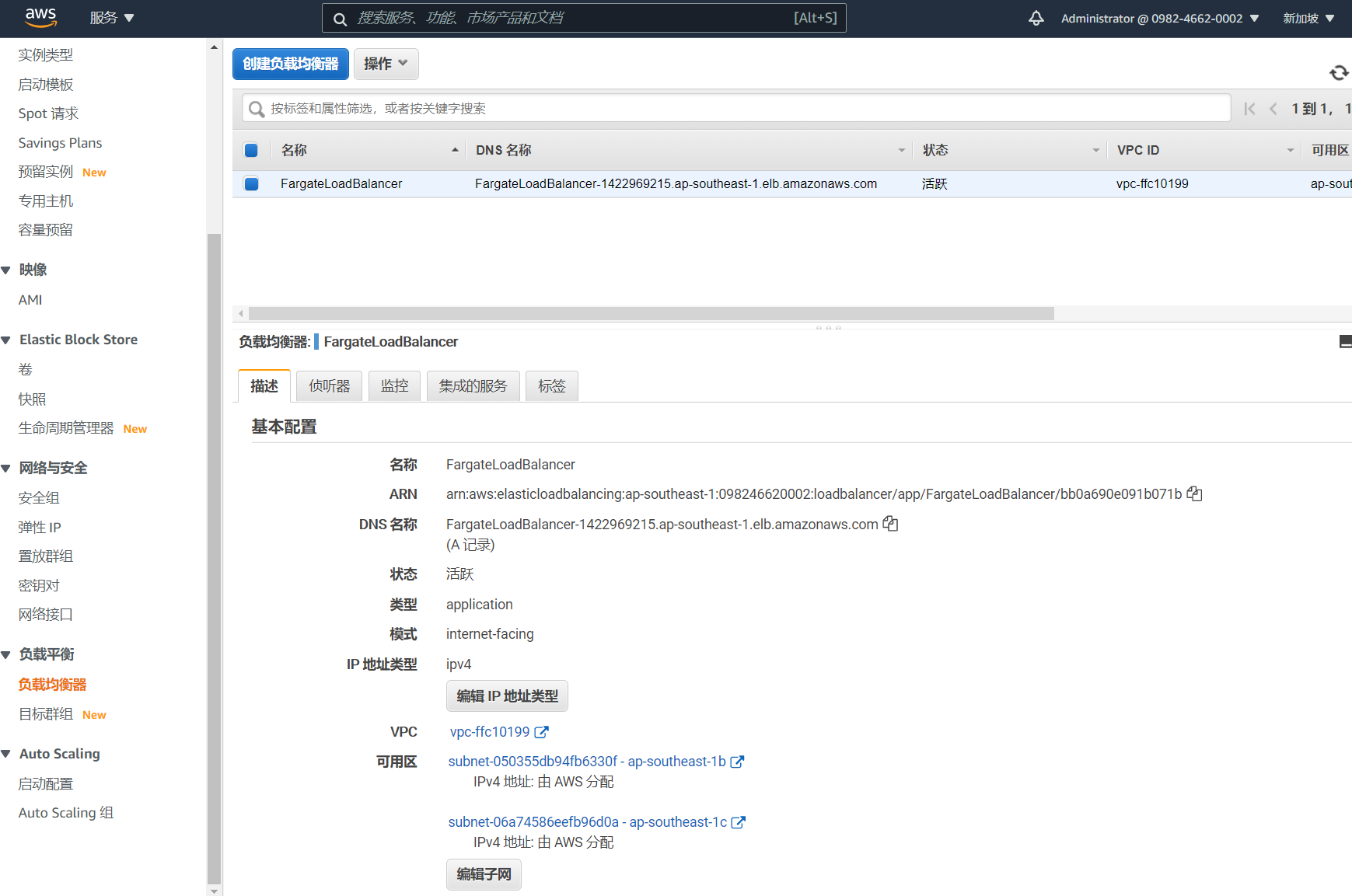

创建ALB对外提供服务，对内监听ECS容器服务。

实验配置步骤

创建Role

创建ALB

使用命令创建ALB

aws elbv2 create-load-balancer --name FargateLoadBalancer \
--subnets subnet-050355db94fb6330f subnet-06a74586eefb96d0a \
--security-groups sg-0b784f3107ad6fe28 --scheme internet-facing \
--type application --ip-address-type ipv4

系统将生成

{
    "LoadBalancers": [
        {
            "IpAddressType": "ipv4",
            "VpcId": "vpc-ffc10199",
            "LoadBalancerArn": `"arn:aws:elasticloadbalancing:ap-southeast-1:098246620002:loadbalancer/app/FargateLoadBalancer/bb0a690e091b071b"`,
            "State": {
                "Code": "provisioning"
            },
            "DNSName": "FargateLoadBalancer-1422969215.ap-southeast-1.elb.amazonaws.com",
            "SecurityGroups": [
                "sg-0b784f3107ad6fe28"
            ],
            "LoadBalancerName": "FargateLoadBalancer",
            "CreatedTime": "2021-07-27T09:28:12.320Z",
            "Scheme": "internet-facing",
            "Type": "application",
            "CanonicalHostedZoneId": "Z1LMS91P8CMLE5",
            "AvailabilityZones": [
                {
                    "SubnetId": "subnet-050355db94fb6330f",
                    "LoadBalancerAddresses": [],
                    "ZoneName": "ap-southeast-1b"
                },
                {
                    "SubnetId": "subnet-06a74586eefb96d0a",
                    "LoadBalancerAddresses": [],
                    "ZoneName": "ap-southeast-1c"
                }
            ]
        }
    ]
}

 ` ` 部分下面会用到

指定ALB监听目标组

aws elbv2 create-target-group --name FargateTargetGroup --protocol HTTP \
--port 8080 --vpc-id vpc-ffc10199 --target-type ip

这里的vpc-xxxxxx是VPC的ID

{
    "TargetGroups": [
        {
            "HealthCheckPath": "/",
            "HealthCheckIntervalSeconds": 30,
            "VpcId": "vpc-ffc10199",
            "Protocol": "HTTP",
            "HealthCheckTimeoutSeconds": 5,
            "TargetType": "ip",
            "HealthCheckProtocol": "HTTP",
            "ProtocolVersion": "HTTP1",
            "Matcher": {
                "HttpCode": "200"
            },
            "UnhealthyThresholdCount": 2,
            "HealthyThresholdCount": 5,
            "TargetGroupArn": `"arn:aws:elasticloadbalancing:ap-southeast-1:098246620002:targetgroup/FargateTargetGroup/9e4630794653255a"`,
            "HealthCheckEnabled": true,
            "HealthCheckPort": "traffic-port",
            "Port": 8080,
            "TargetGroupName": "FargateTargetGroup"
        }
    ]
}

配置ALB和目标组

 aws elbv2 create-listener --load-balancer-arn `arn:aws:elasticloadbalancing:ap-southeast-1:098246620002:loadbalancer/app/FargateLoadBalancer/bb0a690e091b071b` --protocol HTTP --port 80 \
--default-actions Type=forward,TargetGroupArn=`arn:aws:elasticloadbalancing:ap-southeast-1:098246620002:targetgroup/FargateTargetGroup/9e4630794653255a`

 {
    "Listeners": [
        {
            "Protocol": "HTTP",
            "DefaultActions": [
                {
                    "ForwardConfig": {
                        "TargetGroupStickinessConfig": {
                            "Enabled": false
                        },
                        "TargetGroups": [
                            {
                                "TargetGroupArn": "arn:aws:elasticloadbalancing:ap-southeast-1:098246620002:targetgroup/FargateTargetGroup/9e4630794653255a",
                                "Weight": 1
                            }
                        ]
                    },
                    "TargetGroupArn": "arn:aws:elasticloadbalancing:ap-southeast-1:098246620002:targetgroup/FargateTargetGroup/9e4630794653255a",
                    "Type": "forward"
                }
            ],
            "LoadBalancerArn": "arn:aws:elasticloadbalancing:ap-southeast-1:098246620002:loadbalancer/app/FargateLoadBalancer/bb0a690e091b071b",
            "Port": 80,
            "ListenerArn": "arn:aws:elasticloadbalancing:ap-southeast-1:098246620002:listener/app/FargateLoadBalancer/bb0a690e091b071b/0795bc3f32c9641d"
        }
    ]
}

创建Cluster

aws ecs create-cluster --cluster-name farget-cluster

{
    "cluster": {
        "status": "ACTIVE",
        "defaultCapacityProviderStrategy": [],
        "statistics": [],
        "capacityProviders": [],
        "tags": [],
        "clusterName": "farget-cluster",
        "settings": [
            {
                "name": "containerInsights",
                "value": "disabled"
            }
        ],
        "registeredContainerInstancesCount": 0,
        "pendingTasksCount": 0,
        "runningTasksCount": 0,
        "activeServicesCount": 0,
        "clusterArn": `"arn:aws:ecs:ap-southeast-1:098246620002:cluster/farget-cluster"`
    }
}

创建Task

aws ecs register-task-definition --family hello-web-app --task-role-arn `arn:aws:iam::098246620002:role/PythonECSTask` \
--execution-role-arn `arn:aws:iam::098246620002:role/ecsTaskExecutionRole` --network-mode awsvpc \
--container-definitions `file://fargate-container.json` --cpu .5vCPU --memory 1GB \
--requires-compatibilities FARGATE

定义了Task中Container的创建文件，资源需求
使用了前面定义的Role
网络模式为VPC，Fargate仅支持VPC
创建Container的JSON文件

[
    {
        "environment": [
            {
                "name": "MESSAGE",
                "value": "I just deployed a PodVM on the AWS ECS Cluster!!"
            }
        ],
        "name": "webapp",
        "mountPoints": [],
        "image": `"public.ecr.aws/y2y0q7a2/hello-kubernetes:1.5"`,
        "portMappings": [
            {
                "protocol": "tcp",
                "containerPort": 8080,
                "hostPort": 8080
            }
        ]
    }
]

使用了ECR中的Public Image并传递了环境值MESSAGE

{
    "taskDefinition": {
        "status": "ACTIVE",
        "memory": "1024",
        "registeredAt": 1627378294.665,
        "networkMode": "awsvpc",
        "family": `"hello-web-app"`,
        "registeredBy": "arn:aws:iam::098246620002:user/Administrator",
        "placementConstraints": [],
        "requiresAttributes": [
            {
                "name": "com.amazonaws.ecs.capability.task-iam-role"
            },
            {
                "name": "com.amazonaws.ecs.capability.docker-remote-api.1.18"
            },
            {
                "name": "ecs.capability.task-eni"
            }
        ],
        "cpu": "512",
        "executionRoleArn": "arn:aws:iam::098246620002:role/ecsTaskExecutionRole",
        "compatibilities": [
            "EC2",
            "FARGATE"
        ],
        "volumes": [],
        "requiresCompatibilities": [
            "FARGATE"
        ],
        "taskRoleArn": "arn:aws:iam::098246620002:role/PythonECSTask",
        "taskDefinitionArn": "arn:aws:ecs:ap-southeast-1:098246620002:task-definition/hello-web-app:2",
        "containerDefinitions": [
            {
                "environment": [
                    {
                        "name": "MESSAGE",
                        "value": "I just deployed a PodVM on the AWS ECS Cluster!!"
                    }
                ],
                "name": "webapp",
                "mountPoints": [],
                "image": "public.ecr.aws/y2y0q7a2/hello-kubernetes:1.5",
                "cpu": 0,
                "portMappings": [
                    {
                        "protocol": "tcp",
                        "containerPort": 8080,
                        "hostPort": 8080
                    }
                ],
                "essential": true,
                "volumesFrom": []
            }
        ],
        "revision": 2
    }
}

创建服务

aws ecs create-service --cluster `arn:aws:ecs:ap-southeast-1:098246620002:cluster/farget-cluster` --service-name `FargateDemoService-01` \
--task-definition `arn:aws:ecs:ap-southeast-1:098246620002:task-definition/hello-web-app:2` --load-balancers `file://load-balancer.json` --desired-count 2 --launch-type FARGATE \
--network-configuration `file://task-networking.json` --scheduling-strategy REPLICA \
--deployment-controller type=ECS

这里用到了Load balancer和network的两个JSON文件 load-balancer.json：

[
    {
        "targetGroupArn": "arn:aws:elasticloadbalancing:ap-southeast-1:098246620002:targetgroup/FargateTargetGroup/9e4630794653255a",
        "containerName": "webapp",
        "containerPort": 8080
    }
]

task-networking.json：

{
    "awsvpcConfiguration": {
        "subnets": ["subnet-050355db94fb6330f", "subnet-06a74586eefb96d0a"],
        "securityGroups": ["sg-0b784f3107ad6fe28"],
        "assignPublicIp": "ENABLED"
    }
}

{
    "service": {
        "networkConfiguration": {
            "awsvpcConfiguration": {
                "subnets": [
                    "subnet-06a74586eefb96d0a",
                    "subnet-050355db94fb6330f"
                ],
                "securityGroups": [
                    "sg-0b784f3107ad6fe28"
                ],
                "assignPublicIp": "ENABLED"
            }
        },
        "launchType": "FARGATE",
        "enableECSManagedTags": false,
        "loadBalancers": [
            {
                "containerName": "webapp",
                "targetGroupArn": "arn:aws:elasticloadbalancing:ap-southeast-1:098246620002:targetgroup/FargateTargetGroup/9e4630794653255a",
                "containerPort": 8080
            }
        ],
        "desiredCount": 2,
        "clusterArn": "arn:aws:ecs:ap-southeast-1:098246620002:cluster/farget-cluster",
        "serviceArn": `"arn:aws:ecs:ap-southeast-1:098246620002:service/farget-cluster/FargateDemoService-01"`,
        "deploymentConfiguration": {
            "deploymentCircuitBreaker": {
                "enable": false,
                "rollback": false
            },
            "maximumPercent": 200,
            "minimumHealthyPercent": 100
        },
        "createdAt": 1627378533.605,
        "healthCheckGracePeriodSeconds": 0,
        "schedulingStrategy": "REPLICA",
        "placementConstraints": [],
        "deployments": [
            {
                "status": "PRIMARY",
                "networkConfiguration": {
                    "awsvpcConfiguration": {
                        "subnets": [
                            "subnet-06a74586eefb96d0a",
                            "subnet-050355db94fb6330f"
                        ],
                        "securityGroups": [
                            "sg-0b784f3107ad6fe28"
                        ],
                        "assignPublicIp": "ENABLED"
                    }
                },
                "pendingCount": 0,
                "launchType": "FARGATE",
                "rolloutState": "IN_PROGRESS",
                "rolloutStateReason": "ECS deployment ecs-svc/0105513691090167931 in progress.",
                "createdAt": 1627378533.605,
                "desiredCount": 2,
                "failedTasks": 0,
                "taskDefinition": "arn:aws:ecs:ap-southeast-1:098246620002:task-definition/hello-web-app:2",
                "updatedAt": 1627378533.605,
                "platformVersion": "1.4.0",
                "id": "ecs-svc/0105513691090167931",
                "runningCount": 0
            }
        ],
        "serviceName": "FargateDemoService-01",
        "events": [],
        "runningCount": 0,
        "status": "ACTIVE",
        "serviceRegistries": [],
        "pendingCount": 0,
        "createdBy": "arn:aws:iam::098246620002:user/Administrator",
        "platformVersion": "LATEST",
        "placementStrategy": [],
        "propagateTags": "NONE",
        "roleArn": "arn:aws:iam::098246620002:role/aws-service-role/ecs.amazonaws.com/AWSServiceRoleForECS",
        "taskDefinition": "arn:aws:ecs:ap-southeast-1:098246620002:task-definition/hello-web-app:2",
        "enableExecuteCommand": false
    }
}

查看Cluster

Administrator:~/environment/Fargate demo $ **aws ecs list-services --cluster farget-cluster**
{
    "serviceArns": [
        "arn:aws:ecs:ap-southeast-1:098246620002:service/farget-cluster/FargateDemoService-01"
    ]
}

实验结果

Cluster

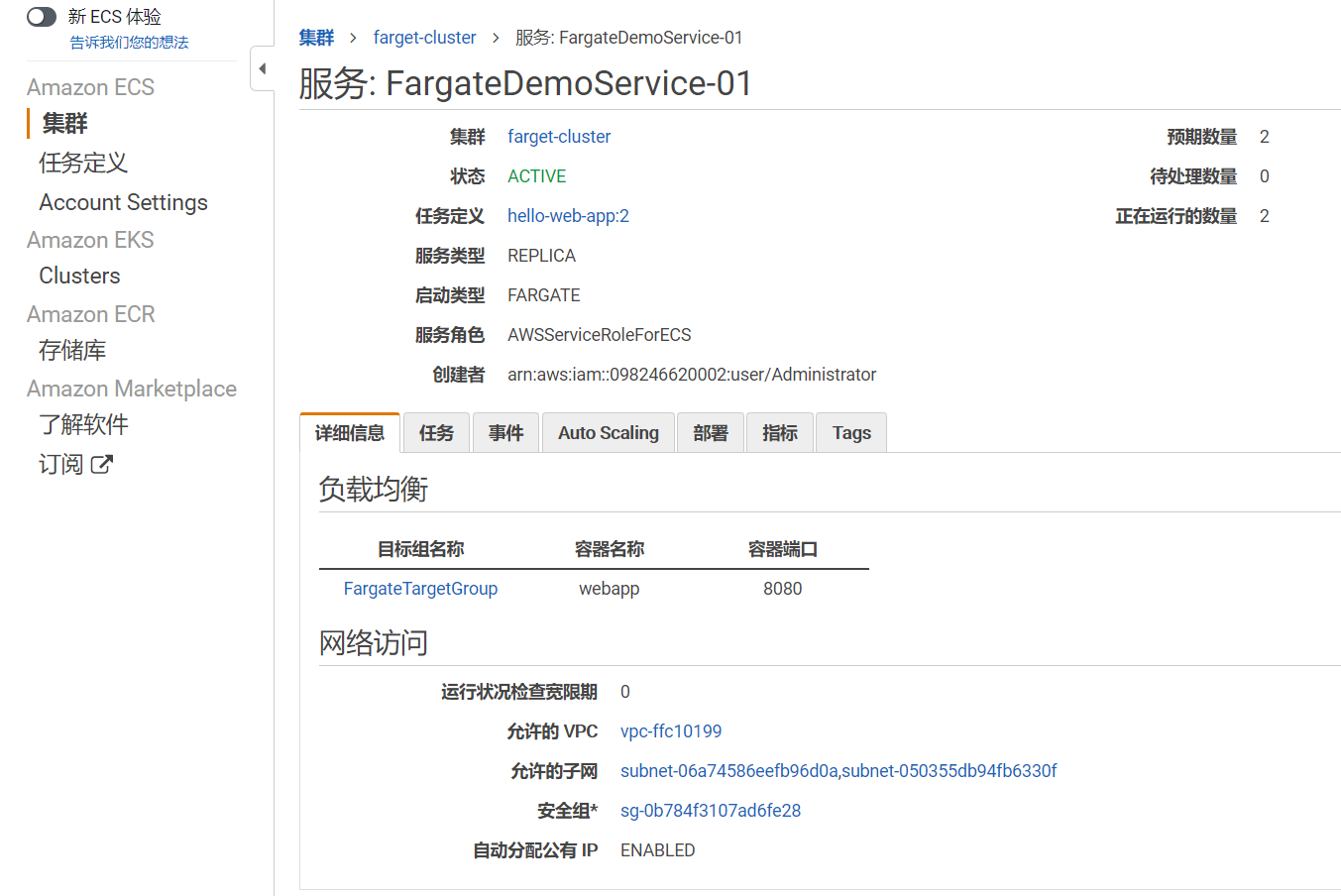

Service

TASK

Load Balancer

Test

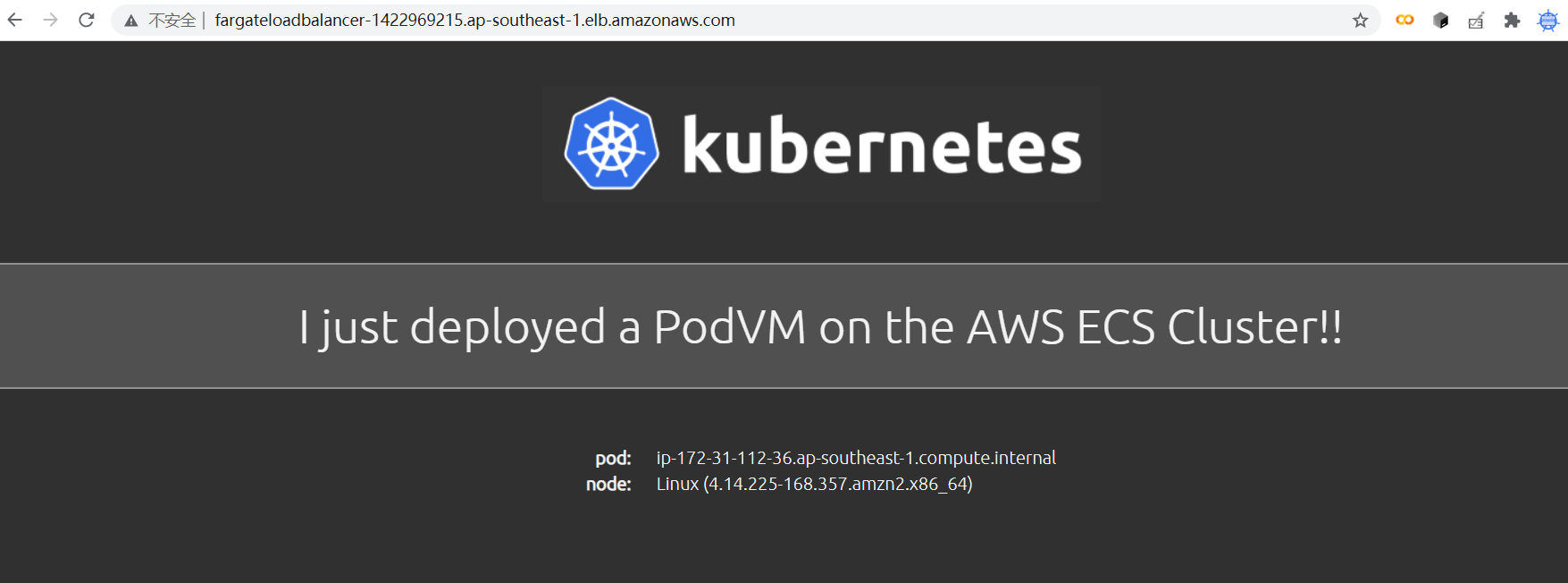

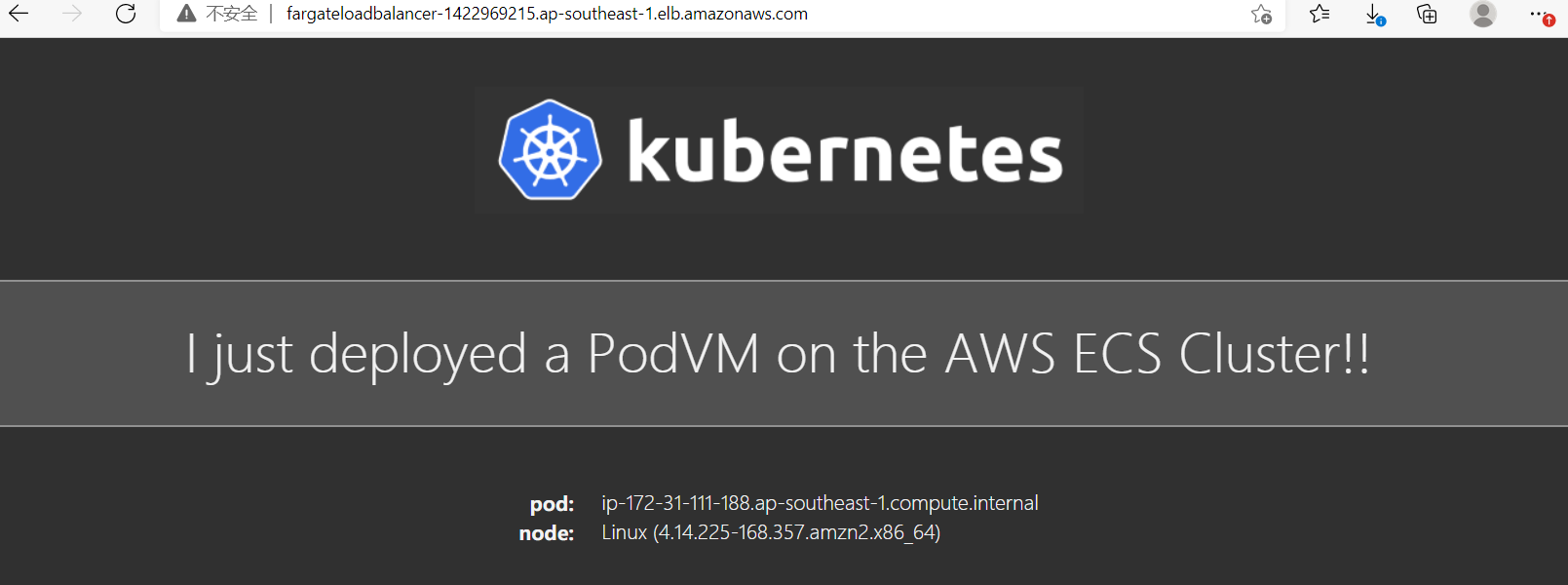

从LBer的对外DNS名称，我们可以访问注意POD的私网地址和我们设计一致。
