Istio-Bookinfo Demo安装

概述

这个应用模仿在线书店的一个分类，显示一本书的信息。是Istio官方推荐的第一个Demo案例。

页面上会显示一本书的描述，书籍的细节（ISBN、页数等），以及关于这本书的一些评论。

Bookinfo 应用分为四个单独的微服务：

productpage. 这个微服务会调用 details 和 reviews 两个微服务，用来生成页面。
details. 这个微服务中包含了书籍的信息。
reviews. 这个微服务中包含了书籍相关的评论。它还会调用 ratings 微服务。
ratings. 这个微服务中包含了由书籍评价组成的评级信息。

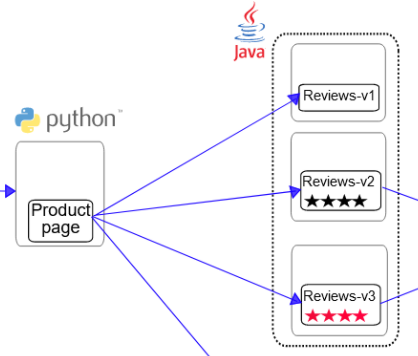

reviews 微服务有 3 个版本：

v1 版本不会调用 ratings 服务。
v2 版本会调用 ratings 服务，并使用 1 到 5 个黑色星形图标来显示评分信息。
v3 版本会调用 ratings 服务，并使用 1 到 5 个红色星形图标来显示评分信息。

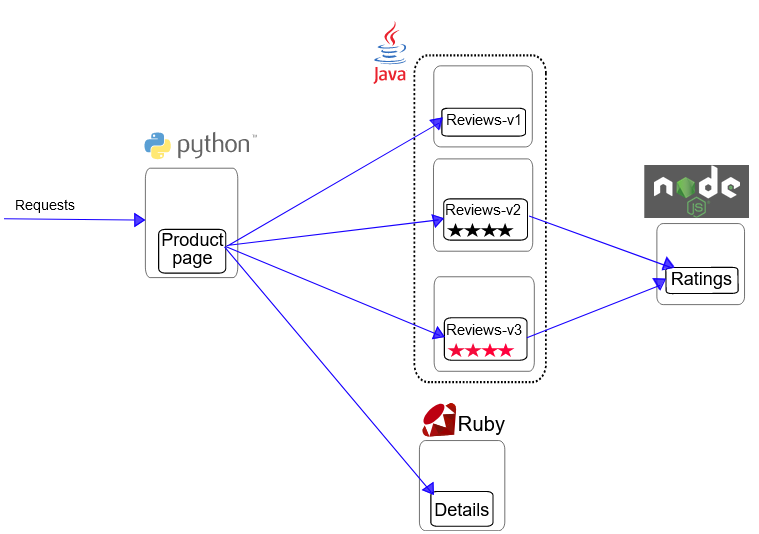

下图展示了这个应用的端到端架构。 Bookinfo 应用中的几个微服务是由不同的语言编写的。这些服务对 Istio 并无依赖，但是构成了一个有代表性的服务网格的例子：它由多个服务、多个语言构成，并且 reviews 服务具有多个版本。

Istio 部署

Kubernetes集群

实验中选用三台CentOS 7.6的虚机作为集群Node，Istio 1.10 测试过的 Kubernetes 发行版包括：1.18, 1.19, 1.20, 1.21.

Name	Role	demo
master01	control-plane,master	192.168.110.70
worker01	worker	192.168.110.71
worker02	worker	192.168.110.72
docker-ce	runtime	20.10.8
kubernetes	plane	1.21.3
Antrea	CNI	1.2.1

Istio安装

Istio可以选用多种安装形式，参考安装指南本实验选用：使用 Helm 安装

下载Istio

手动在Istio Release页面选择版本，本次选择1.10.3，或使用2.中的自动方法
自动下载Istio和工具

curl -L https://istio.io/downloadIstio | sh -

转到 Istio 包目录。本次的包是 istio-1.10.3

total 28
drwxr-x---.  2 root root    22 Jul 15 01:32 `bin`
-rw-r--r--.  1 root root 11348 Jul 15 01:32 LICENSE
drwxr-xr-x.  5 root root    52 Jul 15 01:32 manifests
-rw-r-----.  1 root root   854 Jul 15 01:32 manifest.yaml
-rw-r--r--.  1 root root  5866 Jul 15 01:32 README.md
drwxr-xr-x. 20 root root  4096 Jul 15 01:32 `samples`
drwxr-xr-x.  3 root root    57 Jul 15 01:32 tools

安装目录包含：

samples/ 目录下的示例应用程序

bin/ 目录下的 istioctl 客户端二进制文件 .

将 istioctl 客户端加入搜索路径或拷贝到/usr/local/bin

export PATH=$PWD/bin:$PATH

Helm安装Istio

为 Istio 组件，创建命名空间 istio-system :

$ kubectl create namespace istio-system

安装 Istio base chart，它包含了 Istio 控制平面用到的集群范围的资源：

$ helm install istio-base manifests/charts/base -n istio-system

安装 Istio discovery chart，它用于部署 istiod 服务：

$ helm install istiod manifests/charts/istio-control/istio-discovery
–set global.hub=“docker.io/istio”
–set global.tag=“1.10.3”
-n istio-system

(可选项) 安装 Istio 的入站网关 chart，它包含入站网关组件：

$ helm install istio-ingress manifests/charts/gateways/istio-ingress
–set global.hub=“docker.io/istio”
–set global.tag=“1.10.3”
-n istio-system

(可选项) 安装 Istio 的出站网关 chart，它包含了出站网关组件：

$ helm install istio-egress manifests/charts/gateways/istio-egress
–set global.hub=“docker.io/istio”
–set global.tag=“1.10.3”
-n istio-system

确认命名空间 istio-system 中所有 Kubernetes pods 均已部署，且返回值中 STATUS 的值为 Running：

NAME                                    READY   STATUS    RESTARTS   AGE
istio-egressgateway-57c94c475f-sxfwc    1/1     Running   1          20h
istio-ingressgateway-67c99c69bd-4nnj8   1/1     Running   1          20h
istiod-84d4b8cfbd-fmlx6                 1/1     Running   0          20h

部署应用

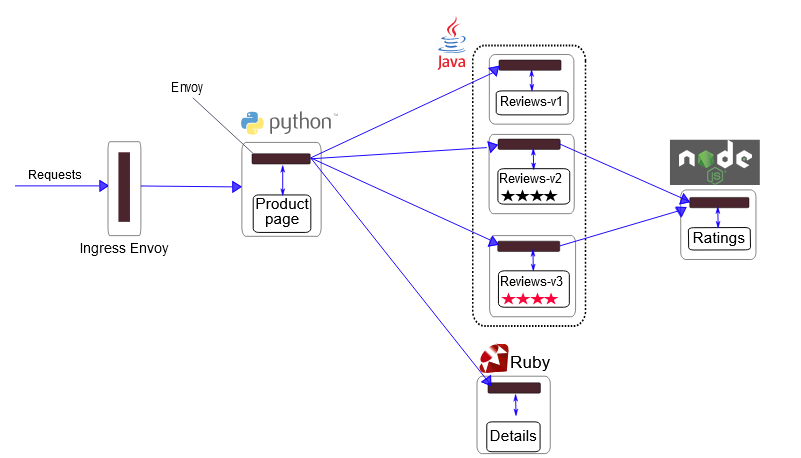

在 Istio 中运行这一应用，无需对应用自身做出任何改变。只要简单的在 Istio 环境中对服务进行配置和运行，具体一点说就是把 Envoy sidecar 注入到每个服务之中。最终的部署结果将如下图所示：

启动应用服务

进入 Istio 安装目录。
Istio 默认自动注入 Sidecar. 请为 default 命名空间打上标签 istio-injection=enabled：

$ kubectl label namespace default istio-injection=enabled

使用 kubectl 部署应用：

$ kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml

# Copyright Istio Authors
#
#   Licensed under the Apache License, Version 2.0 (the "License");
#   you may not use this file except in compliance with the License.
#   You may obtain a copy of the License at
#
#       http://www.apache.org/licenses/LICENSE-2.0
#
#   Unless required by applicable law or agreed to in writing, software
#   distributed under the License is distributed on an "AS IS" BASIS,
#   WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
#   See the License for the specific language governing permissions and
#   limitations under the License.

##################################################################################################
# This file defines the services, service accounts, and deployments for the Bookinfo sample.
#
# To apply all 4 Bookinfo services, their corresponding service accounts, and deployments:
#
#   kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml
#
# Alternatively, you can deploy any resource separately:
#
#   kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml -l service=reviews # reviews Service
#   kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml -l account=reviews # reviews ServiceAccount
#   kubectl apply -f samples/bookinfo/platform/kube/bookinfo.yaml -l app=reviews,version=v3 # reviews-v3 Deployment
##################################################################################################

##################################################################################################
# Details service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
  name: details
  labels:
    app: details
    service: details
spec:
  ports:
  - port: 9080
    name: http
  selector:
    app: details
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: bookinfo-details
  labels:
    account: details
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: details-v1
  labels:
    app: details
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: details
      version: v1
  template:
    metadata:
      labels:
        app: details
        version: v1
    spec:
      serviceAccountName: bookinfo-details
      containers:
      - name: details
        image: docker.io/istio/examples-bookinfo-details-v1:1.16.2
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 9080
        securityContext:
          runAsUser: 1000
---
##################################################################################################
# Ratings service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
  name: ratings
  labels:
    app: ratings
    service: ratings
spec:
  ports:
  - port: 9080
    name: http
  selector:
    app: ratings
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: bookinfo-ratings
  labels:
    account: ratings
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: ratings-v1
  labels:
    app: ratings
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: ratings
      version: v1
  template:
    metadata:
      labels:
        app: ratings
        version: v1
    spec:
      serviceAccountName: bookinfo-ratings
      containers:
      - name: ratings
        image: docker.io/istio/examples-bookinfo-ratings-v1:1.16.2
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 9080
        securityContext:
          runAsUser: 1000
---
##################################################################################################
# Reviews service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
  name: reviews
  labels:
    app: reviews
    service: reviews
spec:
  ports:
  - port: 9080
    name: http
  selector:
    app: reviews
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: bookinfo-reviews
  labels:
    account: reviews
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: reviews-v1
  labels:
    app: reviews
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: reviews
      version: v1
  template:
    metadata:
      labels:
        app: reviews
        version: v1
    spec:
      serviceAccountName: bookinfo-reviews
      containers:
      - name: reviews
        image: docker.io/istio/examples-bookinfo-reviews-v1:1.16.2
        imagePullPolicy: IfNotPresent
        env:
        - name: LOG_DIR
          value: "/tmp/logs"
        ports:
        - containerPort: 9080
        volumeMounts:
        - name: tmp
          mountPath: /tmp
        - name: wlp-output
          mountPath: /opt/ibm/wlp/output
        securityContext:
          runAsUser: 1000
      volumes:
      - name: wlp-output
        emptyDir: {}
      - name: tmp
        emptyDir: {}
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: reviews-v2
  labels:
    app: reviews
    version: v2
spec:
  replicas: 1
  selector:
    matchLabels:
      app: reviews
      version: v2
  template:
    metadata:
      labels:
        app: reviews
        version: v2
    spec:
      serviceAccountName: bookinfo-reviews
      containers:
      - name: reviews
        image: docker.io/istio/examples-bookinfo-reviews-v2:1.16.2
        imagePullPolicy: IfNotPresent
        env:
        - name: LOG_DIR
          value: "/tmp/logs"
        ports:
        - containerPort: 9080
        volumeMounts:
        - name: tmp
          mountPath: /tmp
        - name: wlp-output
          mountPath: /opt/ibm/wlp/output
        securityContext:
          runAsUser: 1000
      volumes:
      - name: wlp-output
        emptyDir: {}
      - name: tmp
        emptyDir: {}
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: reviews-v3
  labels:
    app: reviews
    version: v3
spec:
  replicas: 1
  selector:
    matchLabels:
      app: reviews
      version: v3
  template:
    metadata:
      labels:
        app: reviews
        version: v3
    spec:
      serviceAccountName: bookinfo-reviews
      containers:
      - name: reviews
        image: docker.io/istio/examples-bookinfo-reviews-v3:1.16.2
        imagePullPolicy: IfNotPresent
        env:
        - name: LOG_DIR
          value: "/tmp/logs"
        ports:
        - containerPort: 9080
        volumeMounts:
        - name: tmp
          mountPath: /tmp
        - name: wlp-output
          mountPath: /opt/ibm/wlp/output
        securityContext:
          runAsUser: 1000
      volumes:
      - name: wlp-output
        emptyDir: {}
      - name: tmp
        emptyDir: {}
---
##################################################################################################
# Productpage services
##################################################################################################
apiVersion: v1
kind: Service
metadata:
  name: productpage
  labels:
    app: productpage
    service: productpage
spec:
  ports:
  - port: 9080
    name: http
  selector:
    app: productpage
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: bookinfo-productpage
  labels:
    account: productpage
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: productpage-v1
  labels:
    app: productpage
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: productpage
      version: v1
  template:
    metadata:
      labels:
        app: productpage
        version: v1
    spec:
      serviceAccountName: bookinfo-productpage
      containers:
      - name: productpage
        image: docker.io/istio/examples-bookinfo-productpage-v1:1.16.2
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 9080
        volumeMounts:
        - name: tmp
          mountPath: /tmp
        securityContext:
          runAsUser: 1000
      volumes:
      - name: tmp
        emptyDir: {}
---

Service	Image	port	container_port
Details	examples-bookinfo-ratings-v1:1.16.2	9080	9080
Ratings	examples-bookinfo-ratings-v1:1.16.2	9080	9080
Reviews	examples-bookinfo-reviews-v1:1.16.2	9080	9080
Productpage	examples-bookinfo-productpage-v1:1.16.2	9080	9080

验证服务建立情况

[root@master01 istio-1.10.3]# kubectl get svc
NAME          TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
details       ClusterIP   10.102.118.154   <none>        9080/TCP   19h
kubernetes    ClusterIP   10.96.0.1        <none>        443/TCP    22h
productpage   ClusterIP   10.105.83.88     <none>        9080/TCP   19h
ratings       ClusterIP   10.106.171.86    <none>        9080/TCP   19h
reviews       ClusterIP   10.100.42.119    <none>        9080/TCP   19h

Pod的情况

[root@master01 istio-1.10.3]# kubectl get po
NAME                              READY   STATUS    RESTARTS   AGE
details-v1-79f774bdb9-h8fn8       2/2     Running   0          19h
productpage-v1-6b746f74dc-w6rsh   2/2     Running   0          19h
ratings-v1-b6994bb9-xl5dg         2/2     Running   0          19h
reviews-v1-545db77b95-4vk5g       2/2     Running   0          19h
reviews-v2-7bf8c9648f-k7mg2       2/2     Running   0          19h
reviews-v3-84779c7bbc-d6wsc       2/2     Running   0          19h

可以看到上面的命令会启动全部的四个服务，其中也包括了 reviews 服务的三个版本（v1、v2 以及 v3）。

要确认 Bookinfo 应用是否正在运行，请在某个 Pod 中用 curl 命令对应用发送请求，例如 ratings：

[root@master01 istio-1.10.3]# kubectl exec -it $(kubectl get pod -l app=ratings -o jsonpath='{.items[0].metadata.name}') -c ratings -- curl productpage:9080/productpage | grep -o "<title>.*</title>"
<title>Simple Bookstore App</title>

确定外部访问Ingress

现在 Bookinfo 服务启动并运行中，需要使应用程序可以从外部访问 Kubernetes 集群，例如使用浏览器。可以用 Istio Gateway 来实现这个目标。

为应用程序定义 Ingress 网关：

$ kubectl apply -f samples/bookinfo/networking/bookinfo-gateway.yaml

apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: bookinfo-gateway
spec:
  selector:
    istio: ingressgateway # use istio default controller
  servers:
  - port:
      number: 80
      name: http
      protocol: HTTP
    hosts:
    - "*"
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: bookinfo
spec:
  hosts:
  - "*"
  gateways:
  - bookinfo-gateway
  http:
  - match:
    - uri:
        exact: /productpage
    - uri:
        prefix: /static
    - uri:
        exact: /login
    - uri:
        exact: /logout
    - uri:
        prefix: /api/v1/products
    route:
    - destination:
        host: productpage
        port:
          number: 9080

使用 hosts 字段列举虚拟服务的主机——即用户指定的目标或是路由规则设定的目标，本例中是所有；
在 http 字段包含了虚拟服务的路由规则，用来描述匹配条件和路由行为，它们把 HTTP/1.1、HTTP2 和 gRPC 等流量发送到 hosts 字段指定的目标；
route 部分的 destination 字段指定了符合此条件的流量的实际目标地址，本例中指向productpage:9080
路由规则按从上到下的顺序选择，虚拟服务中定义的第一条规则有最高优先级

确认网关创建完成：

[root@master01 istio-1.10.3]# kubectl get gateways.networking.istio.io
NAME               AGE
bookinfo-gateway   17h

查看IngressGateway

[root@master01 istio-1.10.3]# kubectl get svc -n istio-system
NAME                   TYPE           CLUSTER-IP       EXTERNAL-IP   PORT(S)                                      AGE
istio-egressgateway    ClusterIP      10.98.141.98     <none>        80/TCP,443/TCP                               22h
istio-ingressgateway   LoadBalancer   10.98.243.160    <pending>     15021:30499/TCP,80:30047/TCP,443:31601/TCP   22h

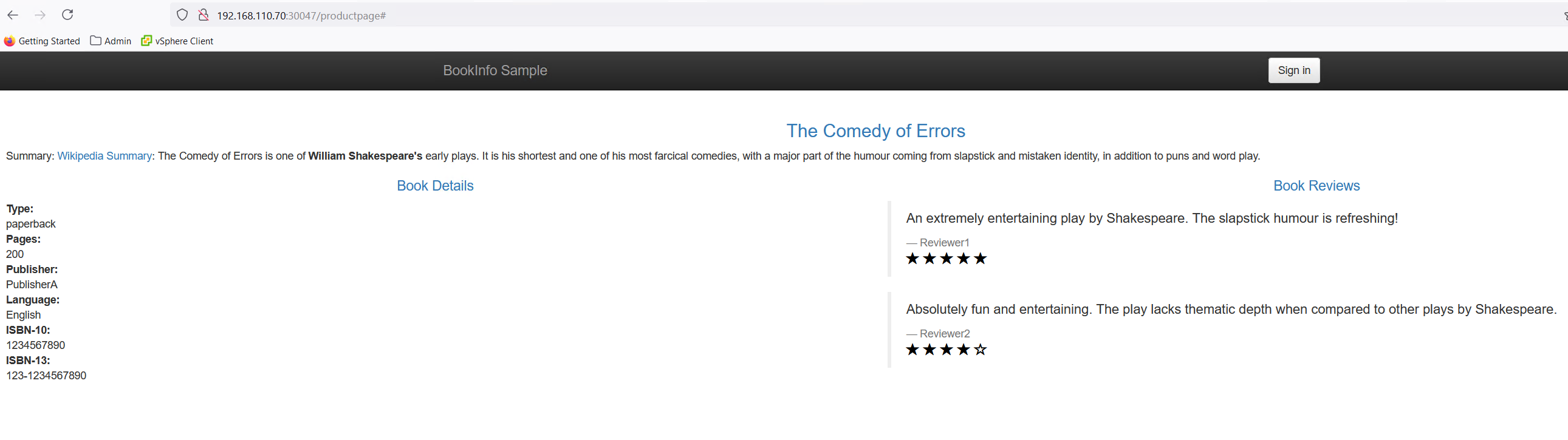

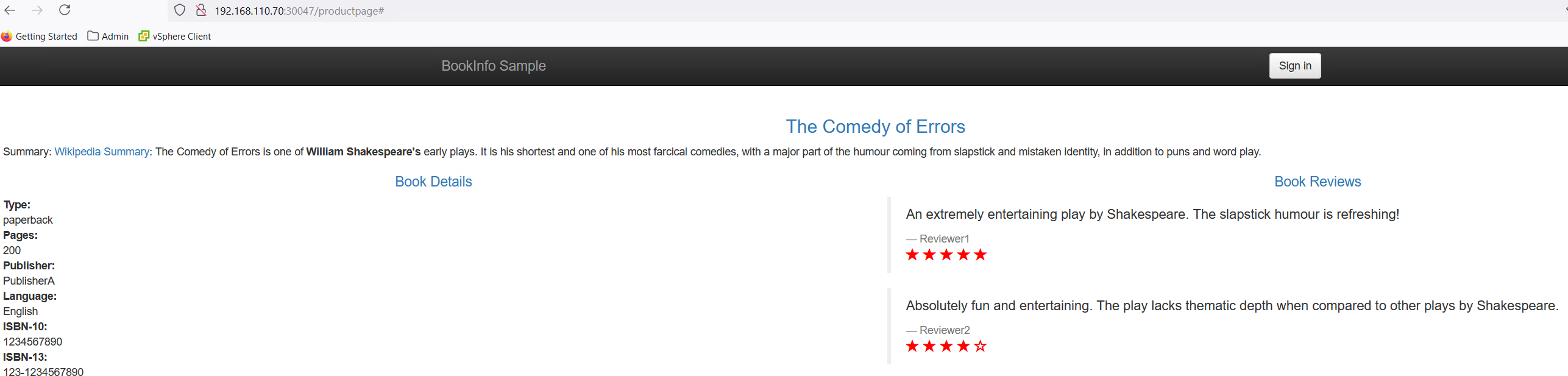

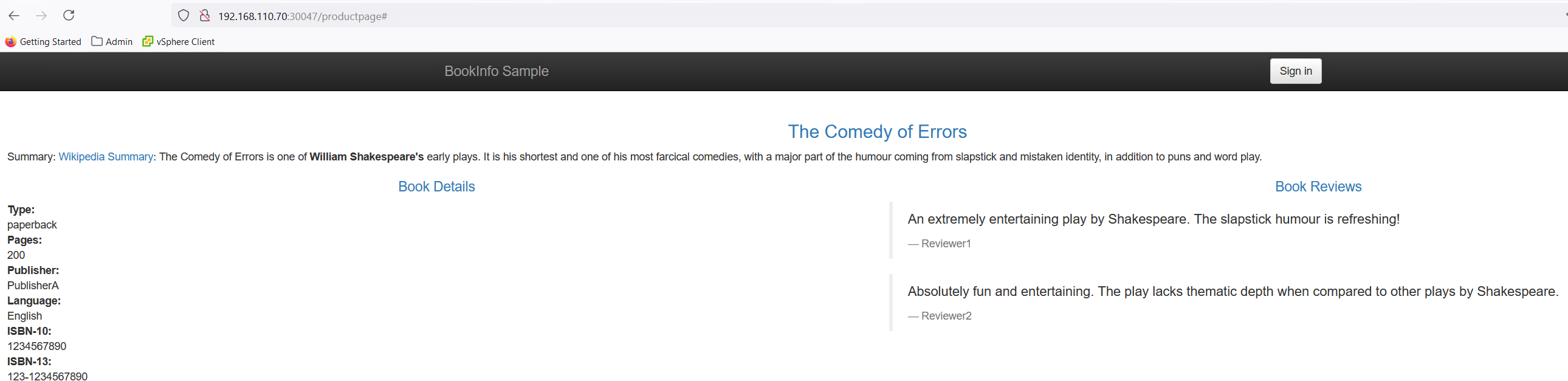

可以看到外面再上一步配置的Gateway80端口对应的nodePort 是300047，由于没有配置对外LBer，所以外可以通过http://host:port访问，即http://192.168.110.70:300047 刷新页面会轮询v1/v2/v3

安装Kiali

Kiali 最初是由 Red Hat 开源的，用于解决 Service Mesh 中可观察性即微服务的可视性问题。目前已获得 Istio 社区的官方支持。 Kiali 提供以下功能：

服务拓扑图
分布式跟踪
指标度量收集和图标
配置校验
健康检查和显示
服务发现

本例中已经给了安装yaml

[root@master01 ~]# kubectl apply -f istio-1.10.3/samples/addons/kiali.yaml
customresourcedefinition.apiextensions.k8s.io/monitoringdashboards.monitoring.kiali.io created
serviceaccount/kiali created
configmap/kiali created
clusterrole.rbac.authorization.k8s.io/kiali-viewer created
clusterrole.rbac.authorization.k8s.io/kiali created
clusterrolebinding.rbac.authorization.k8s.io/kiali created
role.rbac.authorization.k8s.io/kiali-controlplane created
rolebinding.rbac.authorization.k8s.io/kiali-controlplane created
service/kiali created
deployment.apps/kiali created
monitoringdashboard.monitoring.kiali.io/envoy created
monitoringdashboard.monitoring.kiali.io/go created
monitoringdashboard.monitoring.kiali.io/kiali created
monitoringdashboard.monitoring.kiali.io/micrometer-1.0.6-jvm-pool created
monitoringdashboard.monitoring.kiali.io/micrometer-1.0.6-jvm created
monitoringdashboard.monitoring.kiali.io/micrometer-1.1-jvm created
monitoringdashboard.monitoring.kiali.io/microprofile-1.1 created
monitoringdashboard.monitoring.kiali.io/microprofile-x.y created
monitoringdashboard.monitoring.kiali.io/nodejs created
monitoringdashboard.monitoring.kiali.io/quarkus created
monitoringdashboard.monitoring.kiali.io/springboot-jvm-pool created
monitoringdashboard.monitoring.kiali.io/springboot-jvm created
monitoringdashboard.monitoring.kiali.io/springboot-tomcat created
monitoringdashboard.monitoring.kiali.io/thorntail created
monitoringdashboard.monitoring.kiali.io/tomcat created
monitoringdashboard.monitoring.kiali.io/vertx-client created
monitoringdashboard.monitoring.kiali.io/vertx-eventbus created
monitoringdashboard.monitoring.kiali.io/vertx-jvm created
monitoringdashboard.monitoring.kiali.io/vertx-pool created
monitoringdashboard.monitoring.kiali.io/vertx-server created

查看：


[root@master01 addons]# kubectl get po -n istio-system
NAME                                    READY   STATUS    RESTARTS   AGE
......
kiali-7bdf78768c-9gsvl                  1/1     Running   0          17h

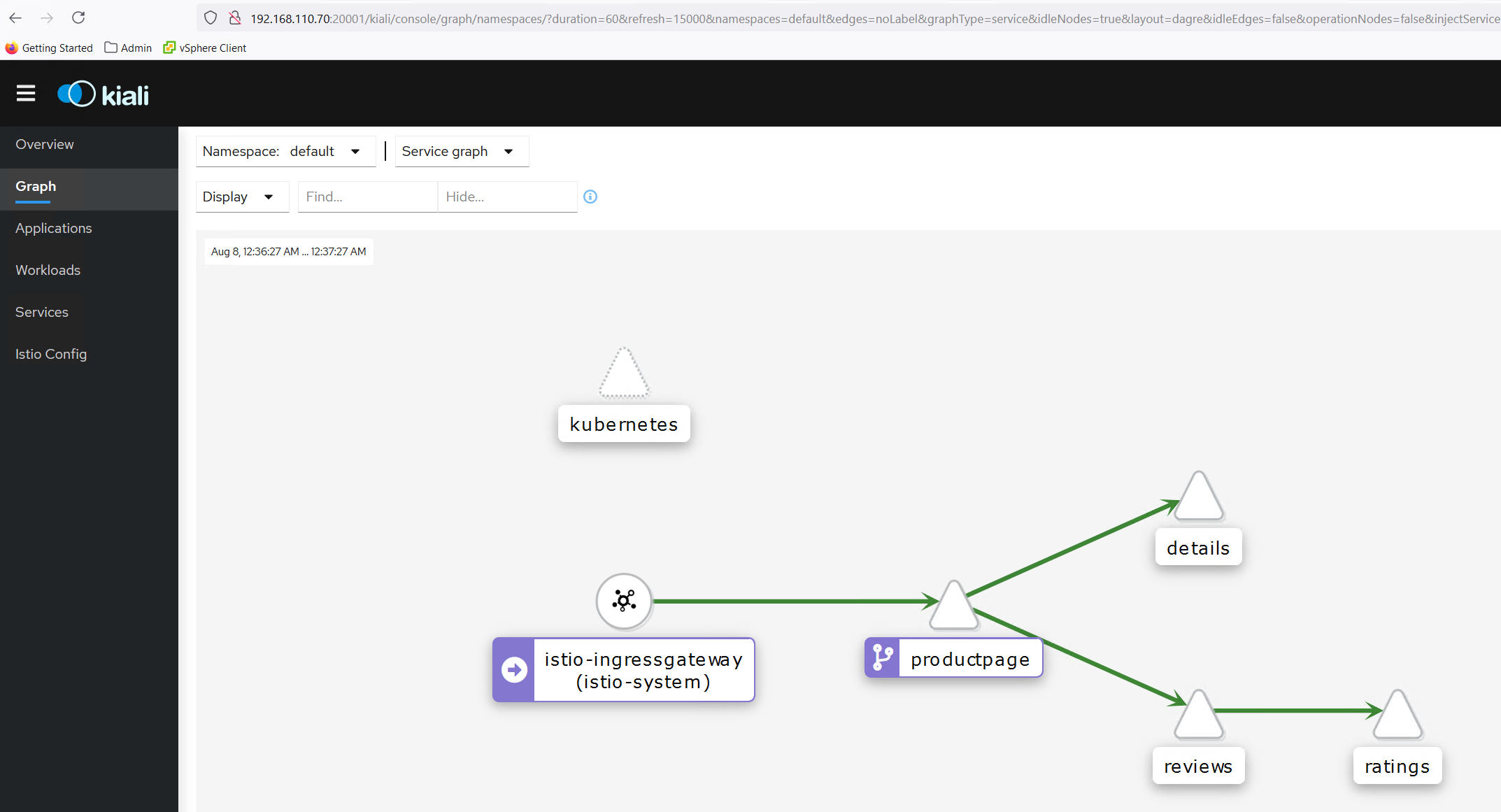

配置访问kiali

[root@master01 ~]# kubectl port-forward –address 0.0.0.0 kiali-7bdf78768c-9gsvl 20001 -n istio-system
