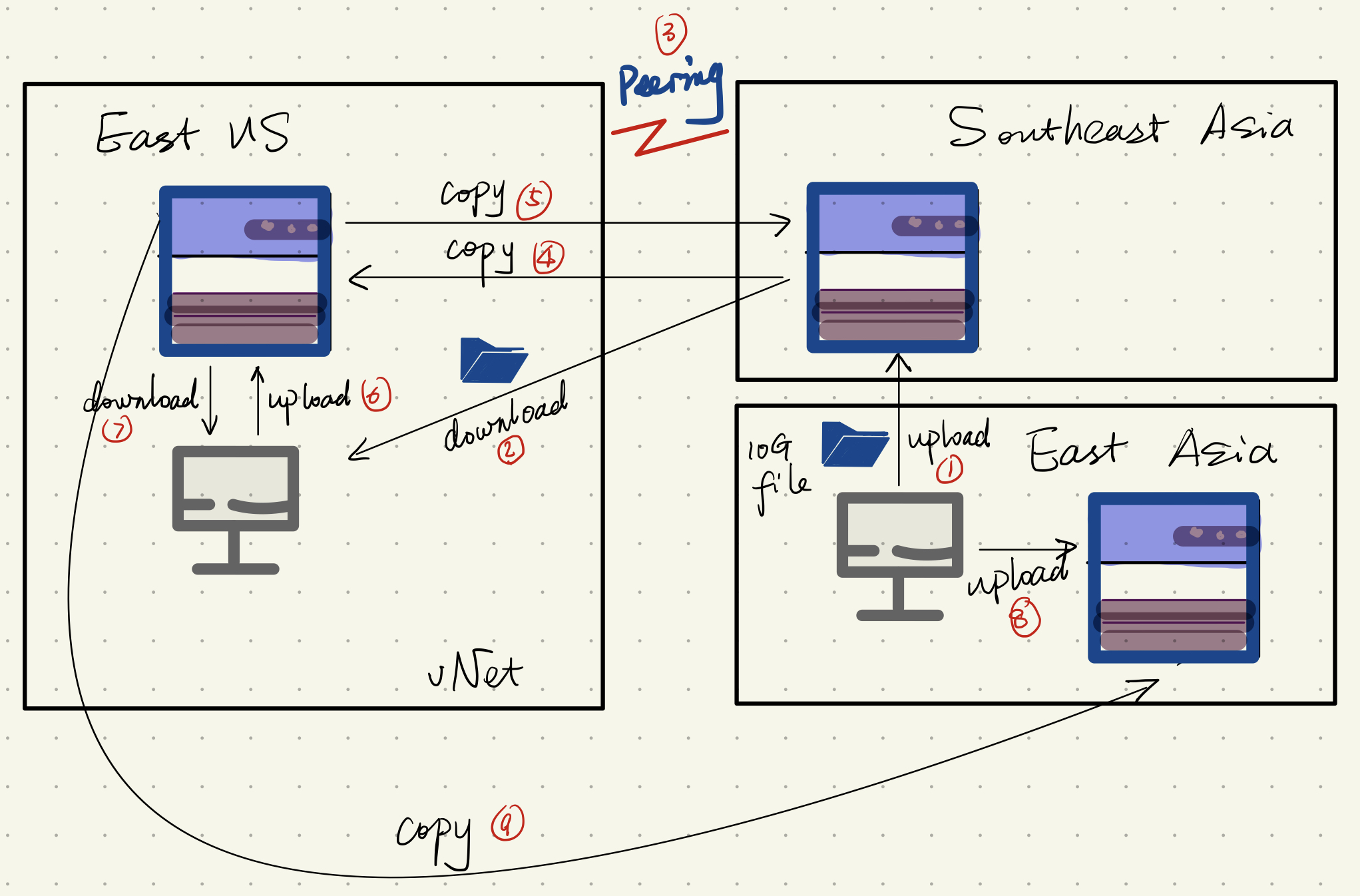

• Blob bw Regions test


    序号说明测试 1测试 2测试 3平均值
    1EA client → SA Container0.23340.2334
    2SA Container → EU client1.02631.26751.01481.10286667
    3SA Container → EU client @ peer created1.12091.24491.14831.17136667
    4SA Container → EU Container4.16814.3354.63514.3794
    2 Hours Later1.43381.86731.65055
    5EU Contaner → SA Container1.00030.93360.96695
    6EU client → EU Container0.7670.76690.7670.76696667
    7EU Container → EU Client, VM disk iops limited0.88140.8814
    8EA client →EU Container0.53350.70020.61685
    9EU container → EA container0.40010.4001

    结论：

    1. Client 跨Region 获取 Container 中文件，在 Blog 选择微软内网优先的情况下，Region间是否使用 Peer 对等对传输效率基本无影响；
    2. Container 的文件直接跨 Region 传输效率与选择的 Region以及时机/方向 有关，一段时间保持稳定；
    3. 同 Region 传输效率高；
    • 原始数据

      1. EA client → SA Container

        root@ubuntu0:/home/zyi# azcopy copy 1.zip https://sastorageac0.blob.core.windows.net/sacontainer
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job f631ebf2-8060-6b47-7164-58044ee0c43c has started
Log file is located at: /root/.azcopy/f631ebf2-8060-6b47-7164-58044ee0c43c.log

100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job f631ebf2-8060-6b47-7164-58044ee0c43c summary
Elapsed Time (Minutes): 0.2334
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

      2. SA Container → EU client

        root@eu-ubuntu0:/home/zyi# azcopy copy https://sastorageac0.blob.core.windows.net/sacontainer/1.zip .
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job bf9d0ff0-6066-2140-4cb9-8716e4272028 has started
Log file is located at: /root/.azcopy/bf9d0ff0-6066-2140-4cb9-8716e4272028.log

0.0 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s):0.0 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total,                         2.1 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s):6.2 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s):11.0 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s)15.9 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s)20.3 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s)24.6 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s)29.1 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s)33.7 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s)38.4 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s)42.4 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s)46.9 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s)51.4 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s)55.3 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s)59.7 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s)64.4 %, 0 68.9 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s): 1710.624 (Disk may be l73.4 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s): 1845.0545 (77.3 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s): 1440.6049  82.5 %, 0 Done, 0 Failed, 1 Pending, 0 Skipped, 1 Total, 100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job bf9d0ff0-6066-2140-4cb9-8716e4272028 summary
Elapsed Time (Minutes): 1.0263
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

#download 2

root@eu-ubuntu0:/home/zyi# azcopy copy https://sastorageac0.blob.core.windows.net/sacontainer/1.zip .
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 732e37c9-9e99-364a-4a4e-fa7484fac927 has started
Log file is located at: /root/.azcopy/732e37c9-9e99-364a-4a4e-fa7484fac927.log

100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job 732e37c9-9e99-364a-4a4e-fa7484fac927 summary
Elapsed Time (Minutes): 1.2675
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

#download 3
^[[Aroot@eu-ubuntu0:/home/zyi# azcopy copy https://sastorageac0.blob.core.windows.net/sacontainer/1.zip .
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 05c9210a-e503-c046-6f9b-853d6c9a3c4e has started
Log file is located at: /root/.azcopy/05c9210a-e503-c046-6f9b-853d6c9a3c4e.log

100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job 05c9210a-e503-c046-6f9b-853d6c9a3c4e summary
Elapsed Time (Minutes): 1.0148
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

      3. SA Container → EU client @ peer created

        root@eu-ubuntu0:/home/zyi# azcopy copy https://sastorageac0.blob.core.windows.net/sacontainer/1.zip .
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job b1d8da46-9358-6b4c-66d4-bb8cb8d53e1f has started
Log file is located at: /root/.azcopy/b1d8da46-9358-6b4c-66d4-bb8cb8d53e1f.log

100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job b1d8da46-9358-6b4c-66d4-bb8cb8d53e1f summary
Elapsed Time (Minutes): 1.1209
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

#2
root@eu-ubuntu0:/home/zyi# azcopy copy https://sastorageac0.blob.core.windows.net/sacontainer/1.zip .
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job b646e5c1-af07-6c41-7a0c-641ecfd5d1cd has started
Log file is located at: /root/.azcopy/b646e5c1-af07-6c41-7a0c-641ecfd5d1cd.log

100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job b646e5c1-af07-6c41-7a0c-641ecfd5d1cd summary
Elapsed Time (Minutes): 1.2449
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

root@eu-ubuntu0:/home/zyi# azcopy copy https://sastorageac0.blob.core.windows.net/sacontainer/1.zip .
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 30f70c4e-fdd1-9a4b-6e89-c5e7406970de has started
Log file is located at: /root/.azcopy/30f70c4e-fdd1-9a4b-6e89-c5e7406970de.log

100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job 30f70c4e-fdd1-9a4b-6e89-c5e7406970de summary
Elapsed Time (Minutes): 1.1483
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

      4. SA Container → EU Container

        root@eu-ubuntu0:/home/zyi# azcopy copy https://sastorageac0.blob.core.windows.net/sacontainer/1.zip https://eustorageac0.blob.core.windows.net/eucontainer/1.zip
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 9168f92f-2da4-6742-6862-8e5696b52a41 has started
Log file is located at: /root/.azcopy/9168f92f-2da4-6742-6862-8e5696b52a41.log

INFO: Transfers could fail because AzCopy could not verify if the destination supports tiers.
100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job 9168f92f-2da4-6742-6862-8e5696b52a41 summary
Elapsed Time (Minutes): 4.1681
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

root@eu-ubuntu0:/home/zyi# azcopy copy https://sastorageac0.blob.core.windows.net/sacontainer/1.zip https://eustorageac0.blob.core.windows.net/eucontainer/10.zip
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 7cca86e8-11b6-164d-7b33-887d9cf10183 has started
Log file is located at: /root/.azcopy/7cca86e8-11b6-164d-7b33-887d9cf10183.log

INFO: Transfers could fail because AzCopy could not verify if the destination supports tiers.
100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job 7cca86e8-11b6-164d-7b33-887d9cf10183 summary
Elapsed Time (Minutes): 4.335
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

#3
root@eu-ubuntu0:/home/zyi# azcopy copy https://sastorageac0.blob.core.windows.net/sacontainer/1.zip https://eustorageac0.blob.core.windows.net/eucontainer/1.zip
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job c4366598-5822-b946-45b9-6ee9d6f6df15 has started
Log file is located at: /root/.azcopy/c4366598-5822-b946-45b9-6ee9d6f6df15.log

INFO: Transfers could fail because AzCopy could not verify if the destination supports tiers.
100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job c4366598-5822-b946-45b9-6ee9d6f6df15 summary
Elapsed Time (Minutes): 4.6351
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

#4
root@ubuntu0:/home/zyi# azcopy copy https://sastorageac0.blob.core.windows.net/sacontainer/1.zip https://eustorageac0.blob.core.windows.net/eucontainer/1.zip
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 15fe8cca-78c3-3d40-4a55-e90d11495258 has started
Log file is located at: /root/.azcopy/15fe8cca-78c3-3d40-4a55-e90d11495258.log

INFO: Transfers could fail because AzCopy could not verify if the destination supports tiers.
100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job 15fe8cca-78c3-3d40-4a55-e90d11495258 summary
Elapsed Time (Minutes): 1.4338
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

#5
root@ubuntu0:/home/zyi# azcopy copy https://sastorageac0.blob.core.windows.net/sacontainer/1.zip https://eustorageac0.blob.core.windows.net/eucontainer/1.zip
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 2ac14c6f-f943-9c4b-7477-6947fd59ab31 has started
Log file is located at: /root/.azcopy/2ac14c6f-f943-9c4b-7477-6947fd59ab31.log

INFO: Transfers could fail because AzCopy could not verify if the destination supports tiers.
100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job 2ac14c6f-f943-9c4b-7477-6947fd59ab31 summary
Elapsed Time (Minutes): 1.8673
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

      5. EU Contaner → SA Container

        root@ubuntu0:/home/zyi# azcopy copy https://eustorageac0.blob.core.windows.net/eucontainer/10.zip https://sastorageac0.blob.core.windows.net/sacontainer
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 8b6f339f-e23b-2f4e-755c-8bd336942b40 has started
Log file is located at: /root/.azcopy/8b6f339f-e23b-2f4e-755c-8bd336942b40.log

INFO: Transfers could fail because AzCopy could not verify if the destination supports tiers.
100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job 8b6f339f-e23b-2f4e-755c-8bd336942b40 summary
Elapsed Time (Minutes): 1.0003
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

#2
root@ubuntu0:/home/zyi# azcopy copy https://eustorageac0.blob.core.windows.net/eucontainer/10.zip https://sastorageac0.blob.core.windows.net/sacontainer/1.zip
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 0c1039f0-7a9f-0e44-6a42-079c03708fb8 has started
Log file is located at: /root/.azcopy/0c1039f0-7a9f-0e44-6a42-079c03708fb8.log

INFO: Transfers could fail because AzCopy could not verify if the destination supports tiers.
100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job 0c1039f0-7a9f-0e44-6a42-079c03708fb8 summary
Elapsed Time (Minutes): 0.9336
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

      6. EU client → EU Container

        root@eu-ubuntu0:/home/zyi# azcopy copy 1.zip https://eustorageac0.blob.core.windows.net/eucontainer/1.zip
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job d3bdc10a-4142-8b41-7f9a-752c840c5f36 has started
Log file is located at: /root/.azcopy/d3bdc10a-4142-8b41-7f9a-752c840c5f36.log

100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s): 623.3303

Job d3bdc10a-4142-8b41-7f9a-752c840c5f36 summary
Elapsed Time (Minutes): 0.767
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

#2
root@eu-ubuntu0:/home/zyi# azcopy copy 1.zip https://eustorageac0.blob.core.windows.net/eucontainer/1.zip
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 3018151c-c777-ca42-4054-7f980de47650 has started
Log file is located at: /root/.azcopy/3018151c-c777-ca42-4054-7f980de47650.log

100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s): 598.946

Job 3018151c-c777-ca42-4054-7f980de47650 summary
Elapsed Time (Minutes): 0.7669
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

#3
root@eu-ubuntu0:/home/zyi# azcopy copy 1.zip https://eustorageac0.blob.core.windows.net/eucontainer/1.zip
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 33cf320d-94a5-aa48-5a35-b94d34cf5cc1 has started
Log file is located at: /root/.azcopy/33cf320d-94a5-aa48-5a35-b94d34cf5cc1.log

100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total, 2-sec Throughput (Mb/s): 579.6335

Job 33cf320d-94a5-aa48-5a35-b94d34cf5cc1 summary
Elapsed Time (Minutes): 0.767
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

      7. EU Container → EU Client, VM disk iops limited

        root@eu-ubuntu0:/home/zyi# azcopy copy  https://eustorageac0.blob.core.windows.net/eucontainer/1.zip 10.zip
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 038b5c4a-7376-094d-4e7c-c958e15378f8 has started
Log file is located at: /root/.azcopy/038b5c4a-7376-094d-4e7c-c958e15378f8.log

100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job 038b5c4a-7376-094d-4e7c-c958e15378f8 summary
Elapsed Time (Minutes): 0.8814
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

      8. EA client →EU Container

        root@ubuntu0:/home/zyi# azcopy copy  1.zip https://eustorageac0.blob.core.windows.net/eucontainer
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job e197a453-cd7d-9042-53bc-de6c0e26246c has started
Log file is located at: /root/.azcopy/e197a453-cd7d-9042-53bc-de6c0e26246c.log

100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job e197a453-cd7d-9042-53bc-de6c0e26246c summary
Elapsed Time (Minutes): 0.5335
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

#2
root@ubuntu0:/home/zyi# azcopy copy  1.zip https://eustorageac0.blob.core.windows.net/eucontainer/10.zip
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 6b1b50a2-3c6c-9c45-5165-085514255e76 has started
Log file is located at: /root/.azcopy/6b1b50a2-3c6c-9c45-5165-085514255e76.log

100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job 6b1b50a2-3c6c-9c45-5165-085514255e76 summary
Elapsed Time (Minutes): 0.7002
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

      9. EU container → EA container

        root@ubuntu0:/home/zyi# azcopy copy https://eustorageac0.blob.core.windows.net/eucontainer/10.zip https://eastorageaccountpg.blob.core.windows.net/blog-pg
INFO: Scanning...
INFO: Autologin not specified.
INFO: Authenticating to destination using Azure AD
INFO: Authenticating to source using Azure AD
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 04a69131-382f-3741-4263-c81b6e28c27e has started
Log file is located at: /root/.azcopy/04a69131-382f-3741-4263-c81b6e28c27e.log

INFO: Transfers could fail because AzCopy could not verify if the destination supports tiers.
100.0 %, 1 Done, 0 Failed, 0 Pending, 0 Skipped, 1 Total,

Job 04a69131-382f-3741-4263-c81b6e28c27e summary
Elapsed Time (Minutes): 0.4001
Number of File Transfers: 1
Number of Folder Property Transfers: 0
Number of Symlink Transfers: 0
Total Number of Transfers: 1
Number of File Transfers Completed: 1
Number of Folder Transfers Completed: 0
Number of File Transfers Failed: 0
Number of Folder Transfers Failed: 0
Number of File Transfers Skipped: 0
Number of Folder Transfers Skipped: 0
TotalBytesTransferred: 10519930170
Final Job Status: Completed

  • AzCopy Sync 使用


      1. azcopy sync，Client local Dir → EU：Blob/container/dir
      • Client未登录 Azure

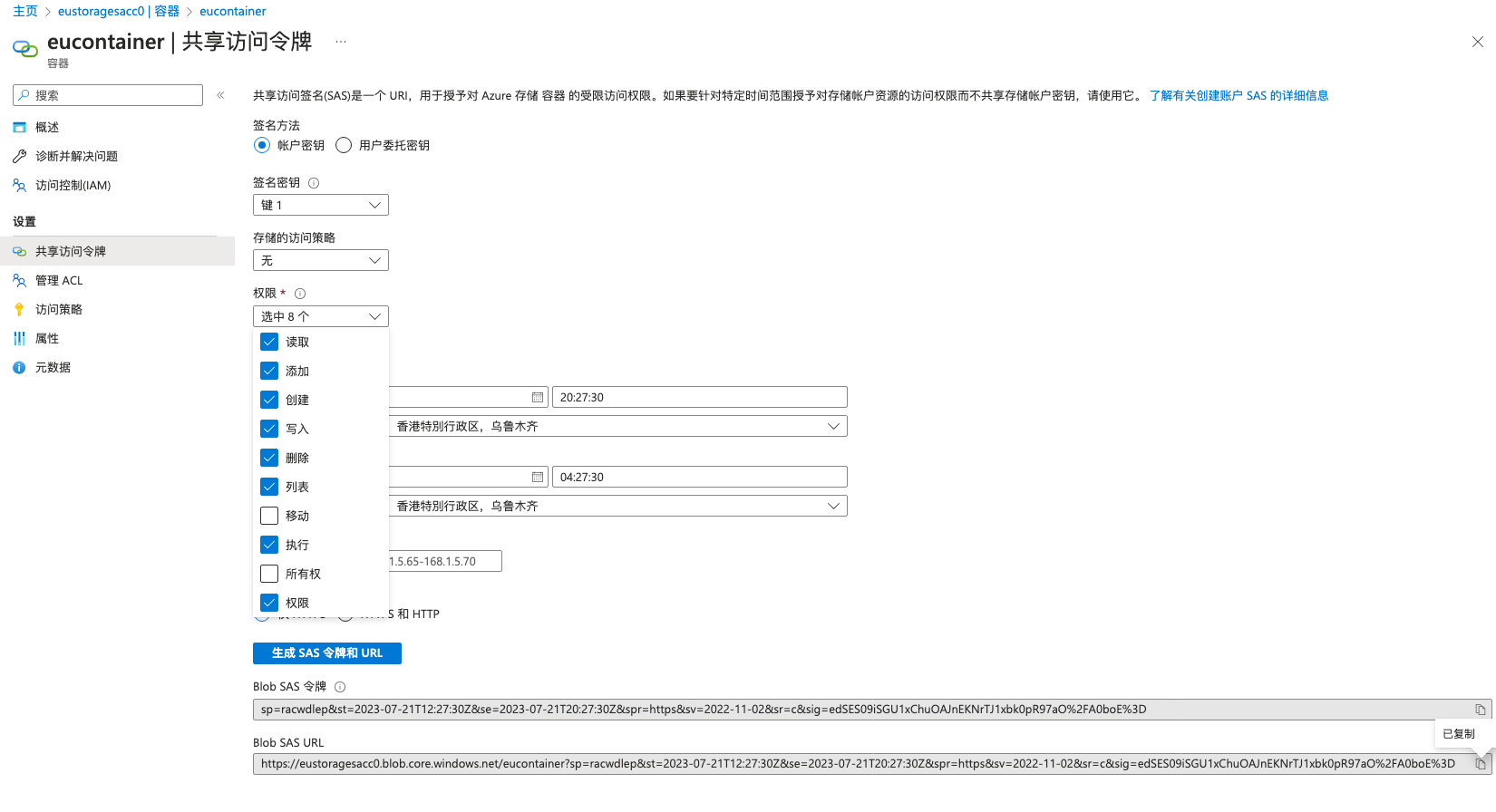

      • blob 的 container 生成共享访问令牌，注意权限选择

      Untitled

      • Client 执行 azcopy sync 命令with SAS

        root@ubuntu0:~# azcopy sync "./blog/" "https://eustoragesacc0.blob.core.windows.net/eucontainer?sp=racwdlep&st=2023-07-21T12:27:30Z&se=2023-07-21T20:27:30Z&spr=https&sv=2022-11-02&sr=c&sig=edSES09iSGU1xChuOAJnEKNrTJ1xbk0pR97aO%2FA0boE%3D"
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job e08f5117-f8b7-314d-5aa3-3f22b0fdf82b has started
Log file is located at: /root/.azcopy/e08f5117-f8b7-314d-5aa3-3f22b0fdf82b.log

100.0 %, 2 Done, 0 Failed, 0 Pending, 2 Total, 2-sec Throughput (Mb/s): 0.6465

Job e08f5117-f8b7-314d-5aa3-3f22b0fdf82b Summary
Files Scanned at Source: 2
Files Scanned at Destination: 0
Elapsed Time (Minutes): 0.0667
Number of Copy Transfers for Files: 2
Number of Copy Transfers for Folder Properties: 0
Total Number Of Copy Transfers: 2
Number of Copy Transfers Completed: 2
Number of Copy Transfers Failed: 0
Number of Deletions at Destination: 0
Total Number of Bytes Transferred: 423810
Total Number of Bytes Enumerated: 423810
Final Job Status: Completed

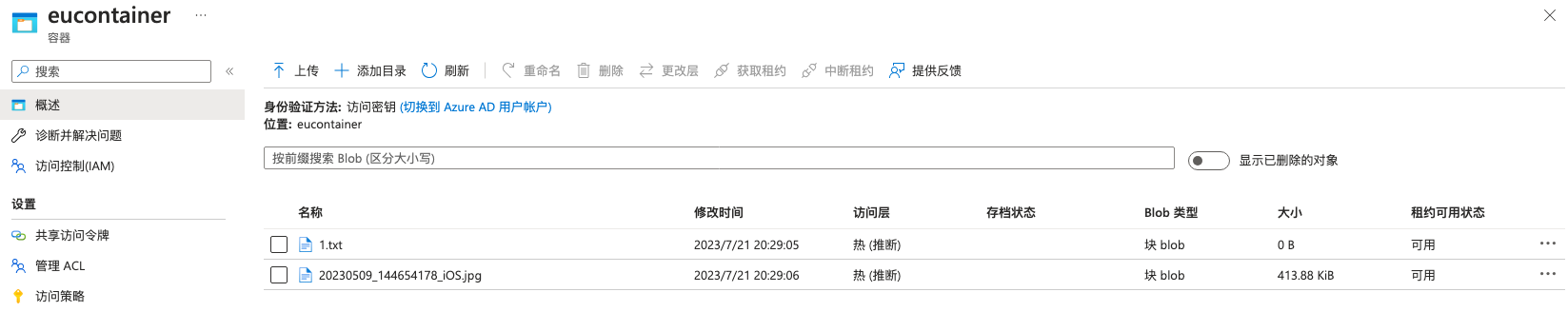

      • 查看 Blob 情况

        Untitled

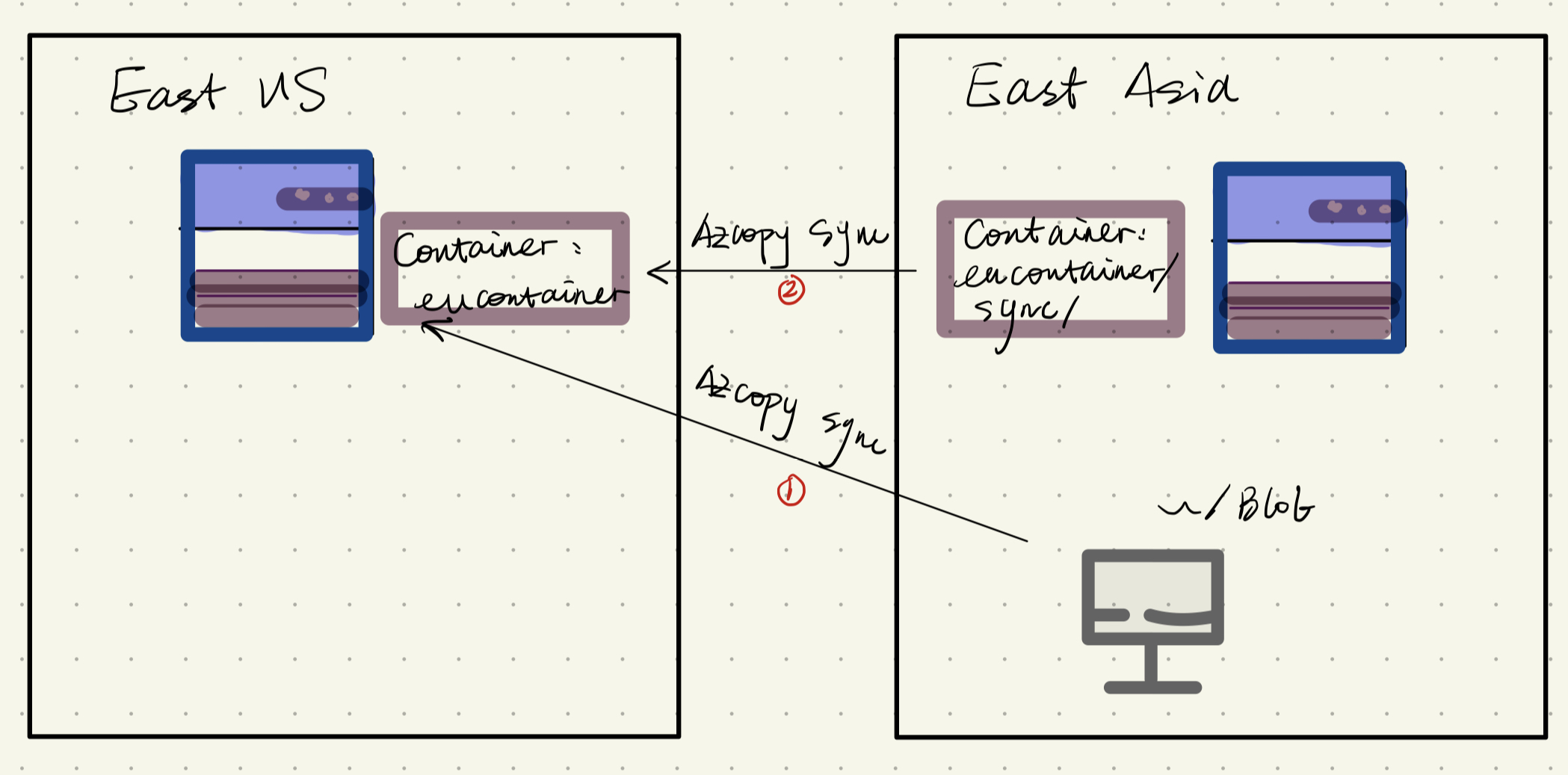

      1. EA：blob/container/dir → EU：blob/container/dir

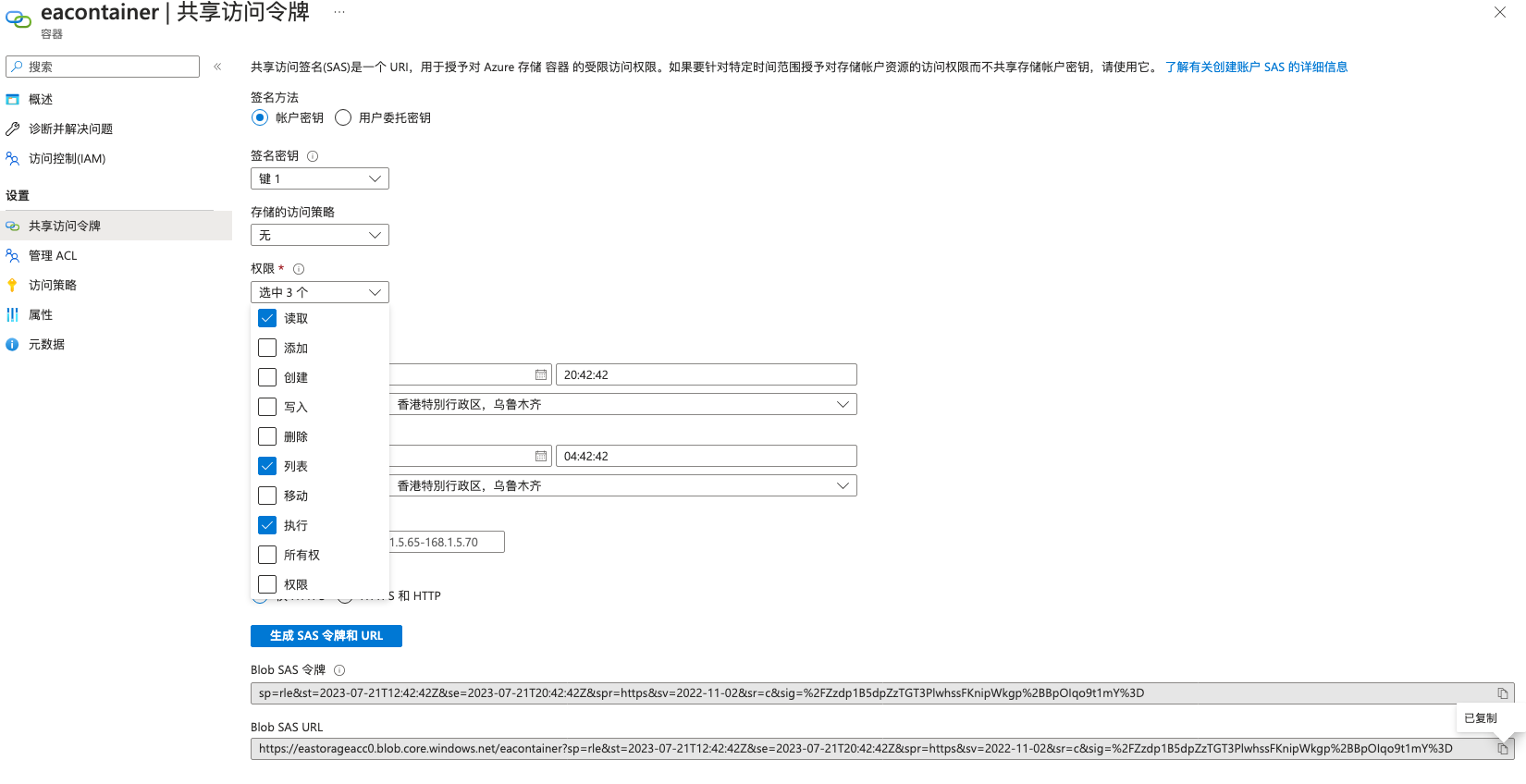

      • ea 源生成 SAS，注意权限

      Untitled

      • Client 执行 azcopy sync 命令with SAS

        root@ubuntu0:~# azcopy sync "https://eastorageacc0.blob.core.windows.net/eacontainer/sync/?sp=rle&st=2023-07-21T12:42:42Z&se=2023-07-21T20:42:42Z&spr=https&sv=2022-11-02&sr=c&sig=%2FZzdp1B5dpZzTGT3PlwhssFKnipWkgp%2BBpOIqo9t1mY%3D" "https://eustoragesacc0.blob.core.windows.net/eucontainer/sync/?sp=racwdlep&st=2023-07-21T12:27:30Z&se=2023-07-21T20:27:30Z&spr=https&sv=2022-11-02&sr=c&sig=edSES09iSGU1xChuOAJnEKNrTJ1xbk0pR97aO%2FA0boE%3D"
INFO: Any empty folders will not be processed, because source and/or destination doesn't have full folder support

Job 747202e5-1afc-b846-4388-9e2e4eee6c58 has started
Log file is located at: /root/.azcopy/747202e5-1afc-b846-4388-9e2e4eee6c58.log

100.0 %, 3 Done, 0 Failed, 0 Pending, 3 Total, 2-sec Throughput (Mb/s): 0

Job 747202e5-1afc-b846-4388-9e2e4eee6c58 Summary
Files Scanned at Source: 3
Files Scanned at Destination: 0
Elapsed Time (Minutes): 0.1
Number of Copy Transfers for Files: 3
Number of Copy Transfers for Folder Properties: 0
Total Number Of Copy Transfers: 3
Number of Copy Transfers Completed: 3
Number of Copy Transfers Failed: 0
Number of Deletions at Destination: 0
Total Number of Bytes Transferred: 847620
Total Number of Bytes Enumerated: 847620
Final Job Status: Completed

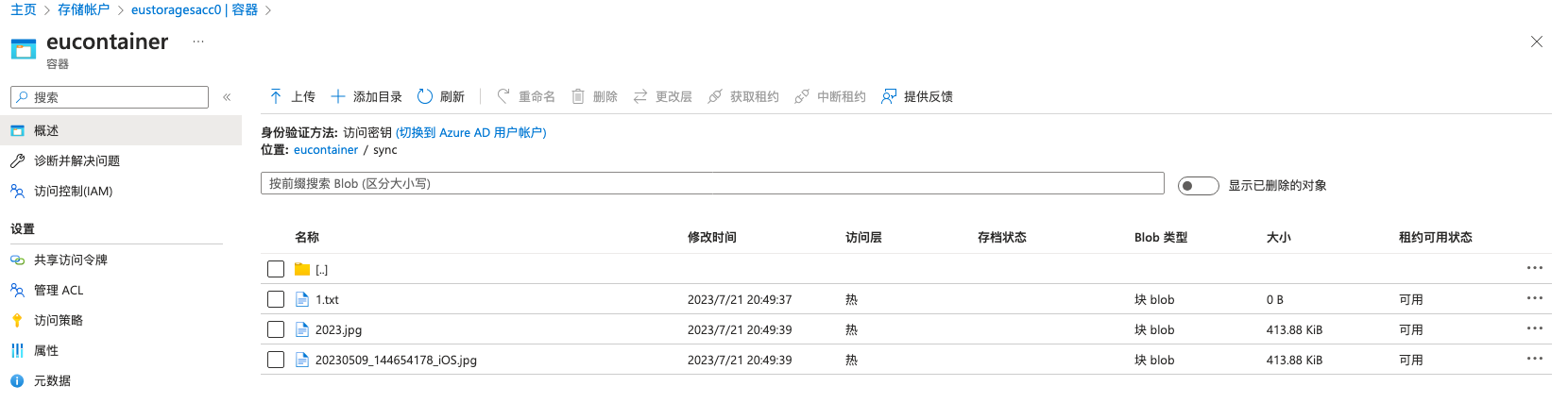

      • 查看 Blob 情况

        Untitled

  • AzCopy copy 示例

    azcopy copy "https://eascc20230728.blob.core.windows.net/local/1.txt?sp=racwli&st=2023-07-31T03:54:41Z&se=2023-08-31T11:54:41Z&spr=https&sv=2022-11-02&sr=c&sig=hRxFYgG3chofx1WUwlb0ji5wPuI%2BgA31DxUNZlPjAW4%3D" ./1.txt
0%
